Aeration & Evacuation

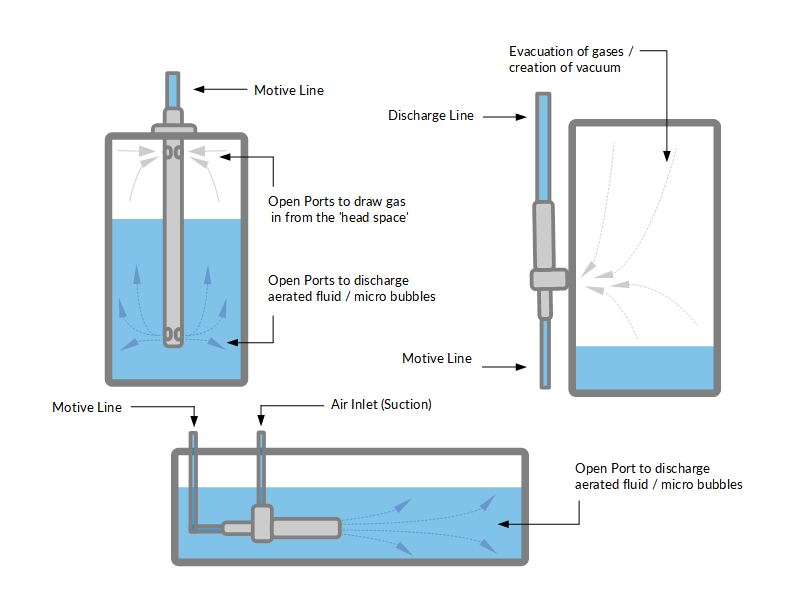

Liquids eductors can also be used to entrain gases. This allows for the creation of vacuums, evacuation of vessels and aeration of the motive fluid. For example IGF vessels use eductors to create micro bubbles required in the water treatment process, Aqua Farms to aerate water tanks and ponds etc and marine vessels use eductors for priming bilge, ballast and fire fighting pumps.

Custom Eductors

Custom Eductors

Liquid Jet Gas Eductors

Key Points

Key Points

Uses a motive liquid to create vacuums and entrain gases.

Can operate with any ideal gas or mixture of ideal gases

The eductor can be mounted inside or outside the vessel.

Installation can be vertical or horizontal.

The open discharge port can be shaped to increase exit velocity, dispersion and encourage micro bubble formation.

Vacuums as great as – 0.75 barg can be created. Dependent on the available motive pressure, flowrate and prevalent discharge conditions.

Custom Eductors, Custom Ejectors, Custom Thermocompressors, Custom Jetpumps, Custom Air Ejectors, Custom Vacuum Ejectors, Custom Vacuum Eductors,
