Dry Solids Handling

As well as liquids and fluidised slurries by incorporating a hopper and washdown system eductors can be used for transporting and mixing solids in the form of powders, pellets, granules or anything else which can safely pass through the eductor geometry.

Eductor pump, Eductor, Slurry Eductor, Solids Eductor, Hopper Eductor, Slurry Pump, Solids Pump, GAC, PAC, ION, Solids Handling, Slurry Handling, Pumping, transporting and mixing solids in the form of powders, pellets, granules, GAC, PAC, ion exchange resin, sand and lime as well as food stuffs, salts, sugar whey and even food and production waste products, custom eductor, custom eductor pump, custom solids eductor, custom hopper eductor, custom slurry eductor, custom ceramic eductor, ceramic eductor,

Examples of solids that can be transported include GAC, PAC, ion exchange resin, sand and lime as well as food stuffs, salts, sugar whey and even food and production waste products.

All units can be supplied as stand alone items or mounted in a skid system for ease of use and integration with existing systems.

Custom Eductors

Custom Eductors

Eductors for Slurries & Solids

Key Points

Key Points

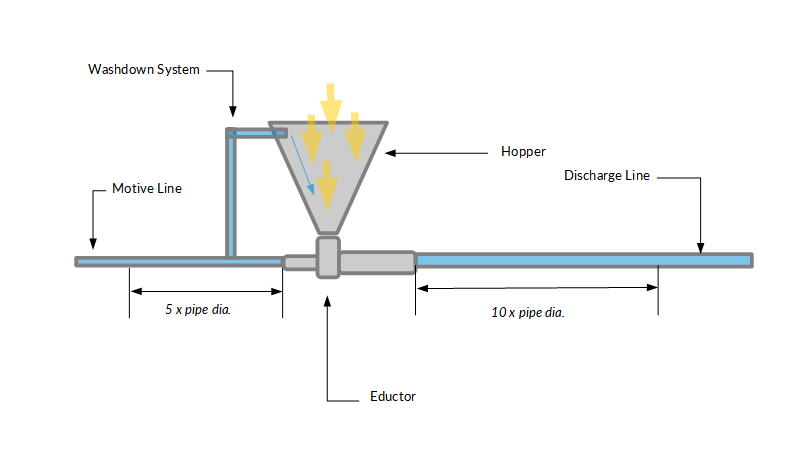

The eductor is mounted below the hopper allowing the solids to be gravity fed into the eductor.

Hoppers are designed to suit the material to be transported therefore bulk density and range of particle sizes are required.

The mass of solids to be transported is only limited by the available water flowrate and a maximum solids content of 20 - 25% wt in the discharge flow.

A wash down system is incorporated into the hopper to fluidise the solids to prevent bridging, blockage and air entrainment.
